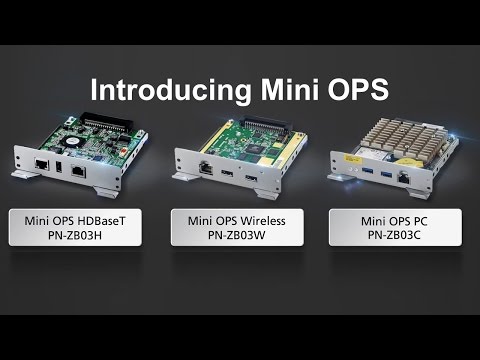

Mini OPS PC Module

The PN-ZB03PC is a powerful single board PC built into the Mini OPS form factor. It features a compact, powerful and high quality solid-state design with the latest generation of low energy Intel Celeron processor. Easy installation ensures a true "Plug and Go" experience with fast user setup.

The PN-ZB03PC is the perfect choice for a tidy and cable-free PC integration within a Sharp monitor. The powerful graphics chipset supports up to 3840 x 2160 video output at 30Hz.

With a fanless design, solid state hard disk (SSD) robust construction supporting a wide operating temperature range the PN-ZN03PC is a reliable, 24/7, professional-grade PC.

The PN-ZB03PC is designed for any Sharp display having the Mini OPS Extension slot and is suitable for digital signage, presentation and many corporate office applications.

Key features

  • Mini OPS Extension Module - Designed and Developed for Sharp
  • "Plug & Go" module installation of integrated Windows PC solution
  • Windows 10 IoT for latest Operating System compatibility
  • Powerful, reliable and long-life performance with industrial-grade SSD components
  • Fast Performance Intel Celeron N3160 (Quad Core)
  • Graphic Output supporting up to4K UHD (3840 x 2160) at 30Hz
  • Fanless and SSD Technology for quiet, reliable, low energy running

Mini OPS PC Module

Key Specifications
Processor Intel Celeron N3160
Memory (GB) 4GB DDR3L-1600, dual channel, onboard / 64GB M.2 SSD
Clock Speed (GHz) 2.24
Graphics Intel HD Graphics 400 (Integrated in Chipset)
Operating System Windows 10 IoT Enterprise 2015 LTSB
Product Dimensions (W x D x H) (mm) 103.6 x 30 x 118.2
Weight (g) 280
Copy Protection no
Power Supply and Operating Environment
Operating Voltage(DCV) DC IN 12-19V
Power Consumption (W) (Operating MAX) 28
MTBF (hours) 50,000
Safety and Environment (EUROPE)
CE yes
Operating Temperature (°C) 0 ° C to + 45 ° C
Connectivity (Audio/Video) OUTPUT
Audio Internal Mini-OPS Connector
Video Internal Mini-OPS Connector (4K@30Hz)
Connectivity (Control/Serial Data)
USB 2x USB 3.0
LAN Port 1x RJ45

Mini OPS PC Module

Datasheet

Datasheet PNZB03PC GB

18.08.2021

Operational manuals

Operation Manual Installation Manual

PNZB03W / PNZB03H / PNZB03PC

22.10.2021

Operation Manual

PN-ZB03PC

22.10.2021
