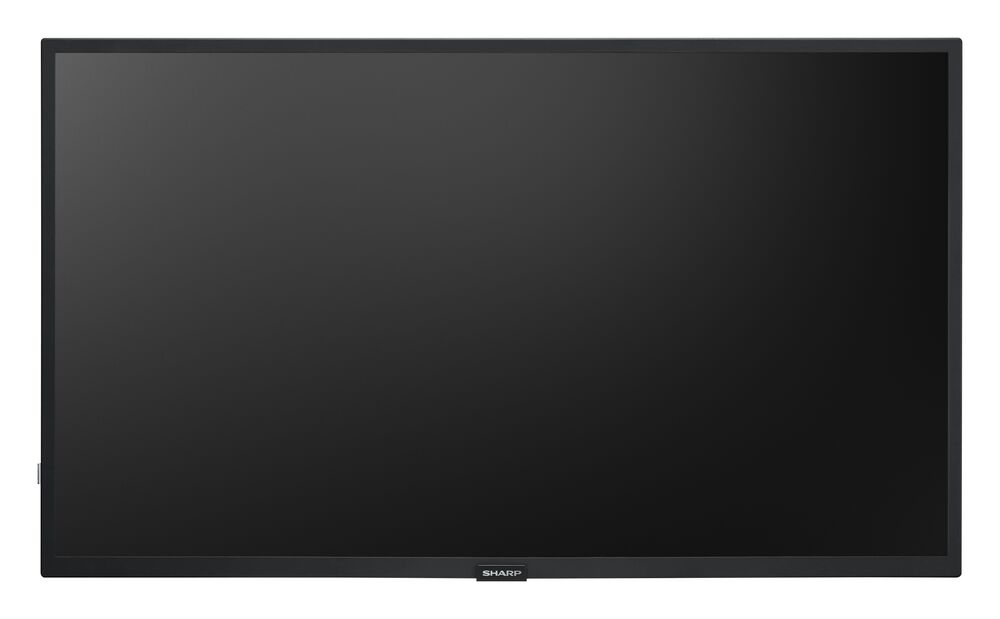

Sharp MultiSync® M322
For economical signage in 24/7 commercial environments, the 32” Sharp MultiSync® M322 delivers all the professional performance and features you need, whilst minimising the cost of ownership.
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Secure remote management – control your devices remotely and securely using Sharp NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources.
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
-
Designed for permanent uninterrupted operation.
-
NaViSet Administrator is a remote management and monitoring software platform for NEC and Sharp displays, projectors, and related devices
Overview
Intuitive professional content delivery For economical signage in 24/7 commercial environments, the 32” Sharp MultiSync® M322 delivers all the professional performance and features you need, whilst minimising the cost of ownership. With a 450 cd/m2 brightness output and anti-glare panel, the viewer enjoys excellent visual quality unhindered by reflections, with a slim, aesthetic design for unobtrusive integration. Featuring multiple industry standard digital and analogue signal inputs, the M322 is future-proof for flexible integration. It also features full external control support through both RS-232 or LAN connectivity enabling operators to achieve time and cost savings when managing an estate of displays. The full metal...
Technical Specifications
| General | |
|---|---|
| Weight (kg) | 6 |
| Panel Data | |
|---|---|
| Bezel Size (L/R) mm | 12 |
| Bezel Size (U/L) mm | 12 |
| Response Time (grey to grey avg) ms | 8 |
| Installation | |
|---|---|
| Portrait | Yes |
| Landscape | Yes |
| Landscape | Yes |
| Portrait | Yes |
| Mounting (VESA/Number of Points/Pitch mm) | 200 x 200 (FDMI), 100 x 100 (FDMI) |
| Mounting (VESA/Number of Points/Pitch mm) | 4 |
| Mounting Screw Specification (Size/Max Length) | M4 |
| Face up | Yes |
| Display Module Data | |
|---|---|
| Native Resolution (Pixels) | 1920 x 1080 |
| Brightness (cd/m2) | 450 |
| Colour Depth [bn] | 16.7 (8bit) |
| Response Time (typ.) [ms] | 8 |
| Key Specifications | |
|---|---|
| 24/7 Operation Certified | Yes |
| Built in Speakers (W) | 5 + 5 |
| Power Management | Yes |
| Temperature Sensor | Yes |
| Operating Time | 24/7 |
| Power Supply and Operating Environment | |
|---|---|
| Operating Voltage(ACV) / Frequency(Hz) | 100-240 |
| Operating Voltage(ACV) / Frequency(Hz) | 50-60 |
| Via AC-Adapter | Yes |
| Operating Voltage(DCV) | 100-240 |
| Operating Temperature (oC) | 0 - 40 |
| Storage Temperature [°C] | -20 - 60 |
| Storage Humidity [%] | 10 |
| Storage Humidity [%] | 90 |
| Power Saving Mode (W) | < 2 (Networked Standby) |
| Weights and Measures | |
|---|---|
| Shipping Carton Dimensions (W/H/D) mm | 870 |
| Shipping Carton Dimensions (W/H/D) mm | 527 |
| Shipping Carton Dimensions (W/H/D) mm | 160 |
| Shipping Weight (Kg) | 10 |
| Image | |
|---|---|
| Aspect Ratio | 16:9 |
| Contrast Ratio | |
| Display | |
|---|---|
| Haze Level (%) | |
| Panel Technology | VA with Direct LED backlights |
| Screen Size (inch) | 32 |
| Screen Size (cm) | 80 |
| Viewing Angle | |
| Colour Gamuts | 72% NTSC |
| Resolution | |
|---|---|
| Supported Resolution | 1024 x 768 , 1920 x 1200, 1400 x 1050, 1366 x 768, 1280 x 768, 3840 x 2160, 4096 x 2160, 1280 x 720, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1440 x 900 |
| Synchronisation Rate | |
|---|---|
| Horizontal Frequency [kHz] | 26 - 91.1 |
| Vertical Frequency [Hz] | 23 - 86 |
| Connectivity | |
|---|---|
| Output / Control | LAN 100Mbit |
| Digital | DisplayPort, HDMI, USB Type C |
| Analog | VGA |
| Electrical | |
|---|---|
| Power Supply | |
| Power Consumption on-mode (IEC62087:2012) | 40 (shipping) |
| Mechanical | |
|---|---|
| Bezel Width (Left/Right) [mm] | 12 |
| Bezel Width (Upper) [mm] | 12 |
| Bezel Width (Lower) [mm] | 17 |
| Environmental Conditions | |
|---|---|
| Operating Humidity (min) [%] | 20 |
| Operating Humidity (max) [%] | 80 |
| Ergonomics | |
|---|---|
| Landscape Dimensions (Width) [mm] | 727 |
| Landscape Dimensions (Height) [mm] | 426 |
| Landscape Dimensions (Depth) [mm] | 67 |
| MediaPlayer | |
|---|---|
| Supported Image Formats | |
| Regulatory | |
|---|---|
| Safety and Ergonomics | RoHS, CE, EAC |
| Green Features | |
|---|---|
| Ecological Standards | Energy Star 8.0 |
| Energy Efficiency | LED backlight technology, Energy consumption: 41 kWh/1000 h, Energy efficiency class: G |
| Supplied Accessories | |
|---|---|
| Shipping Content | Power Cable, Remote Control, HDMI Cable, 2 x AAA batteries, Setup Manual, Display |
| Additional Features | |
|---|---|
| Colour Versions | Black Front Bezel |
| Accessories | |
| Special Characteristics | |
| Remote Management | |
| Warranty | Optional 4th to 5th year warranty extension, additional services available, 3 years warranty incl. backlight |
