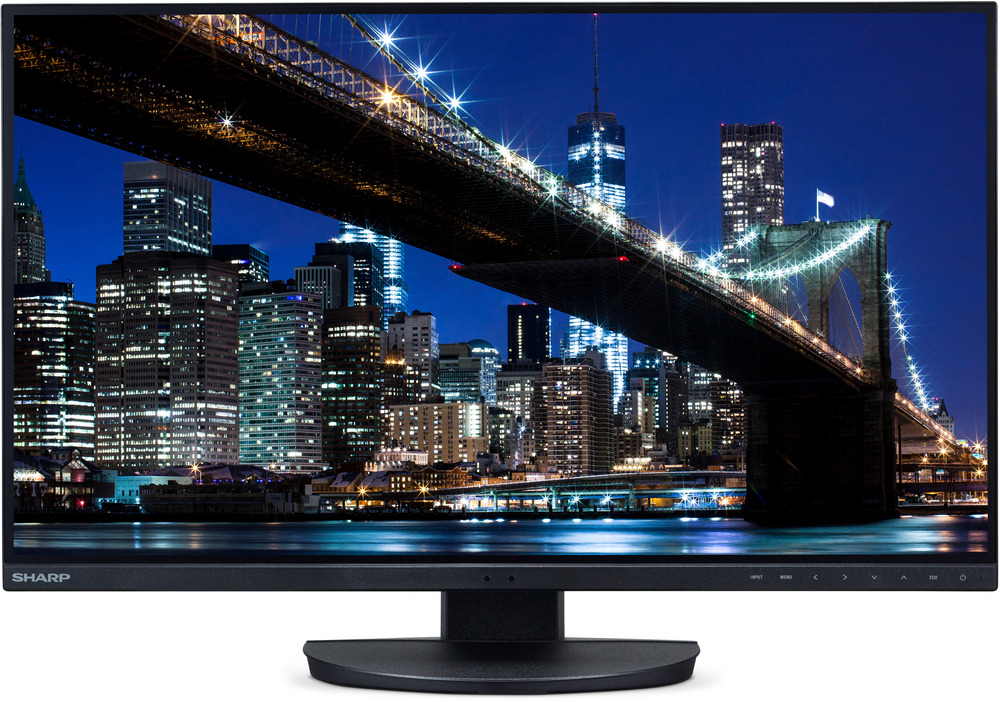

Sharp MultiSync EA272Q
Improve your productivity with the EA272Q. With ergonomic features to maximise your comfort and an embedded LAN transforming your display into a docking hub, you can create a more efficient workspace tailored to you.
- Improve your productivity – enhance your personal workspace with embedded LAN, whereby the display becomes a Docking Hub, eliminating the need for additional hardware and reducing eWaste.
- Frictionless workflows – with USB-C connectivity only a single cable is needed to connect your notebook to the display receiving power in return, ideal for hot desking and BYOD scenarios.
- Energy efficiency – reduce your energy consumption by up to 30% by enabling the built-in Human and Ambient Light Sensors ensuring the display is only powered up according to usage conditions.
- Ergonomic comfort – with full 150 mm height adjustability the user can easily adjust the display to achieve the best possible individual set up.
Overview
Maximum screen estate, minimum cable clutter For detail-rich applications, the high pixel density QuadHD resolution coupled with 27-inch active screen area results in an expansive digital canvas for the most productive personal workspaces. Extend your visual command even further with a near uninterrupted multi-screen configuration with ultra-narrow bezel and DisplayPort OUT daisy-chain. Featuring powerful 90W USB Type-C connectivity and embedded LAN, the EA272Q becomes a fully functioning Docking Hub solution. With just a single cable to connect notebook/PC to the display whilst powering your device, workspace remains clear of cable clutter and e-waste is minimised....
Technical Specifications
| Installation | |
|---|---|
| Mounting (VESA/Number of Points/Pitch mm) | 100 x 100 |
| Kensington Lock | Yes |
| Display Module Data | |
|---|---|
| Brightness (cd/m2) | 350 |
| Dynamic Contrast Ratio | 5000:1 |
| Display Colours | 16.78 |
| Response Time (grey to grey avg) ms | 6 |
| Pixel Pitch (mm H/V) | 0.233 |
| Power Supply and Operating Environment | |
|---|---|
| Operating Temperature (oC) | 5 - 35 |
| Storage Temperature [°C] | -10 - 60 |
| Storage Humidity [%] | 10 |
| Storage Humidity [%] | 85 |
| Weights and Measures | |
|---|---|
| Product Weight Without Stand (Kg) | 6 |
| Product Weight With Stand (Kg) | 9 |
| Image | |
|---|---|
| Aspect Ratio | 16:9 |
| Contrast Ratio | |
| Display | |
|---|---|
| Panel Technology | IPS TFT with W-LED backlight |
| Screen Size (inch) | 27 |
| Screen Size (cm) | 68 |
| Viewing Angle | |
| Colour Gamuts | 100 % sRGB, 77 % NTSC |
| Resolution | |
|---|---|
| Optimum Resolution | 2560 x 1440 at 60 Hz |
| Supported Resolution | 1024 x 768 , 1280 x 1024, 1152 x 864, 1600 x 1200, 1920 x 1080, 1920 x 1440, 2560 x 1440, 640 x 480, 800 x 600, 832 x 624 |
| Synchronisation Rate | |
|---|---|
| Horizontal Frequency [kHz] | 31.5 - 94 |
| Vertical Frequency [Hz] | 50 - 75 |
| Connectivity | |
|---|---|
| Output / Control | 1 x RJ45 |
| Digital | DisplayPort, DisplayPort out, HDMI, USB ver. 3.1 (2 down / 1 up), USB Type C (90 W) |
| Electrical | |
|---|---|
| Power Supply | |
| Power Consumption on-mode (IEC62087:2012) | 17 (Eco Mode 2), 27 (typ.) |
| Mechanical | |
|---|---|
| Bezel Width (Left/Right) [mm] | 1 |
| Bezel Width (Upper) [mm] | 1 |
| Environmental Conditions | |
|---|---|
| Operating Humidity (min) [%] | 20 |
| Operating Humidity (max) [%] | 80 |
| Ergonomics | |
|---|---|
| Screen Rotate (°) | -90 - 90 |
| Height adjustable stand [mm] | 150 |
| Landscape Dimensions (Width) [mm] | 612 |
| Landscape Dimensions (Depth) [mm] | 250 |
| Landscape Dimensions (Height) Min [mm] | 378 |
| Landscape Dimensions (Height) Max [mm] | 528 |
| Regulatory | |
|---|---|
| Safety and Ergonomics | CE, EAC, PSB, RoHS |
| Green Features | |
|---|---|
| Ecological Materials | Minimal use of harmful material |
| Ecological Standards | Energy Star 8.0, ErP compliant, RoHS compliant, TCO 9.0, TCO edge |
| Energy Efficiency | Ambient light sensor, ECOMode, Energy consumption: 13 kWh/1000 h, Energy efficiency class: C, Human sensor |
| Supplied Accessories | |
|---|---|
| Shipping Content | Display, Power Cable, Setup Guide, USB-C Cable |
| Additional Features | |
|---|---|
| Adjust Functions | Audio Volume / Lock-Out, Auto Adjust, Brightness, Colour Temperature Control, Contrast, Control Sync, DV Mode, EcoMode, Human Sensing, Intelligent Power Management, Language Select, Monitor Information, On- Screen-Display (OSD) lock-out, One Touch Recovery, Power-Off Timer |
| Cable Management | Yes |
| Colour Versions | Black Front Bezel, Black Back Cabinet, White Front Bezel, White Back Cabinet |
| Plug & Play | DDC2B/2Bi, EDID Standard, VESA DDC/CI |
| Special Characteristics | DICOM simulation, NaViSet Administrator 2 |
| Audio | |
| Warranty | 3 years warranty incl. backlight, Optional 1st to 3rd year 24/7 usage warranty, Optional 4th to 5th year warranty extension |
